(Jindex model description: because of the export CE certification requirements, the model is the actual print drawing size) JD-AK45 series adopts continuous supply ink cartridge, which greatly reduces the cost of consumables

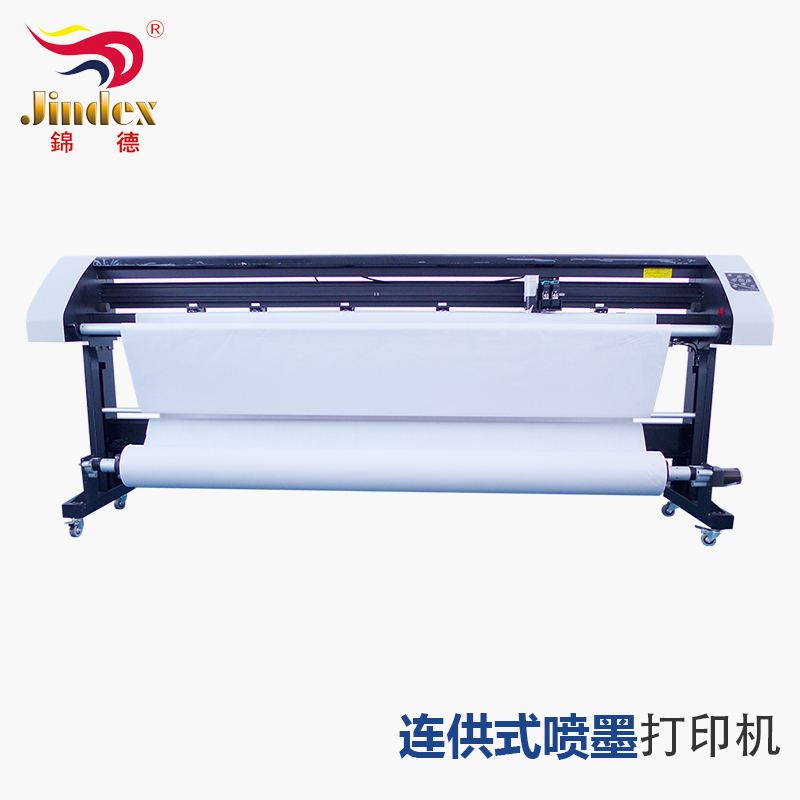

Jindex AK45
series inkjet printers, with the excellent electromechanical structure
in 2010 and the integration of the latest German network transmission
technology, have launched the world's first more advanced 3i inkjet
printers:

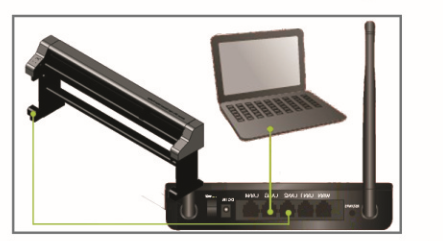

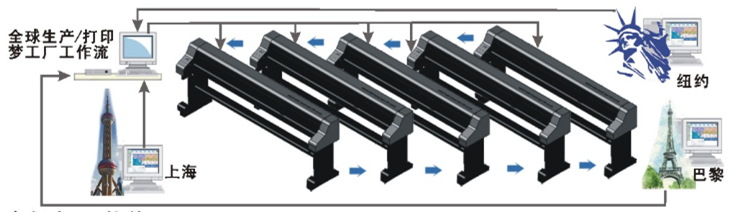

1i. Internet multi-machine networking "cloud printing technology";
Cloud
printing technology: a computer network control up to 50 inkjet machine
printing at the same time, HPGLHPGPLTPRN and other files through the
local area network or INTERNET free transmission, system free
distribution printing, the establishment of your "global printing dream
factory" immediately become a reality!
2i. Integrated system
1.The
first cloud configuration inkjet printer in the world. After replacing
the computer or installing WINDOWS again, the automatic configuration
inkjet printer can print normally without 1:1 scale and misalignment of
the nozzle.
2.
Adopt intelligent paper saving, perfect dynamic control acceleration
function, compatible with WIN7,WIN8 and other ink-jet machine
incompatible computer operating system.
3. Standard delivery paper motor,
bearing 50KG paper roll, paper track and "slide sheet" in the printing
platform to prevent paper jam, single, double and four spray free
choice, as needed to upgrade the printing capacity.
3i. Intelligent artificial intelligence:
The
machine is equipped with powerful artificial intelligence technology,
intelligent memory after power failure, and printing on demand after
power on, which can coordinate other brands of inkjet machine to print
together.
High Speed Inkjet Plotter Jd-Ak45 Series Technical Parameters Standard Table
Technical Parameters/Mode
JD-AK45-185
JD-AK45-205
Maximum Drawn Width
185cm
205cm
Maximum Feed Width
190cm
210cm
Maximum Speed & Resolution
90 square meters/hour 300dpi
Continue Drawing After Emergency Stop
In case of sudden power failure, work interruption and other emergencies, when the printing stops, the system will automatically save the printed file, then select the unprinted area of the file, and continue to print after starting up to prevent repeated printing.
Cartridge Type
HP45Supply ink cartridge
CartridgeNumber
2heads + 1 ink warehouse
Curves Quality
Computer curve automatic optimization technology, to ensure that the curve printing effect mellow smooth, print quality and effect is clear and fine, smooth interface, no sawtoot
Length Guarantee
Continuous printing more than hundreds of meters, the docking is still perfect
Paper Feed Motor
The perfect paper feeding system ensure the continuous and smooth paper feeding in the process of paper printing, which will never lead to the problem of paper not moving, and will never cause the problem of short and long size
Port Selection
Super network port or USB conversion port
Machine Language
HPGL form GerBER,Lectra,Optitex,Investronic,Assyst,VetiGraph,Tuka,Any Chhinese CAD
Power Consumption
<300W;110-260V AC;47-66HZ;(Option:90-120V)
Network Printing
Truly realized a computer control multiple inkjet plotter network printing, with the "night printing mode", to achieve the unmanned printing
Automatic Paging
The output center software can automatically page print according to the width of the printed file and the maximum print width
Gross Weight
135KG
150KG
Control Advantages
Usingservo motor with a code plate to controlthe direction of inkjet printing for ensuring accurate alignment.No grating strips and grating sensors to avoid maintenance and related derivative maintenance after the grating is contaminated with dust. and makes the UPS machine more stable and reliable
